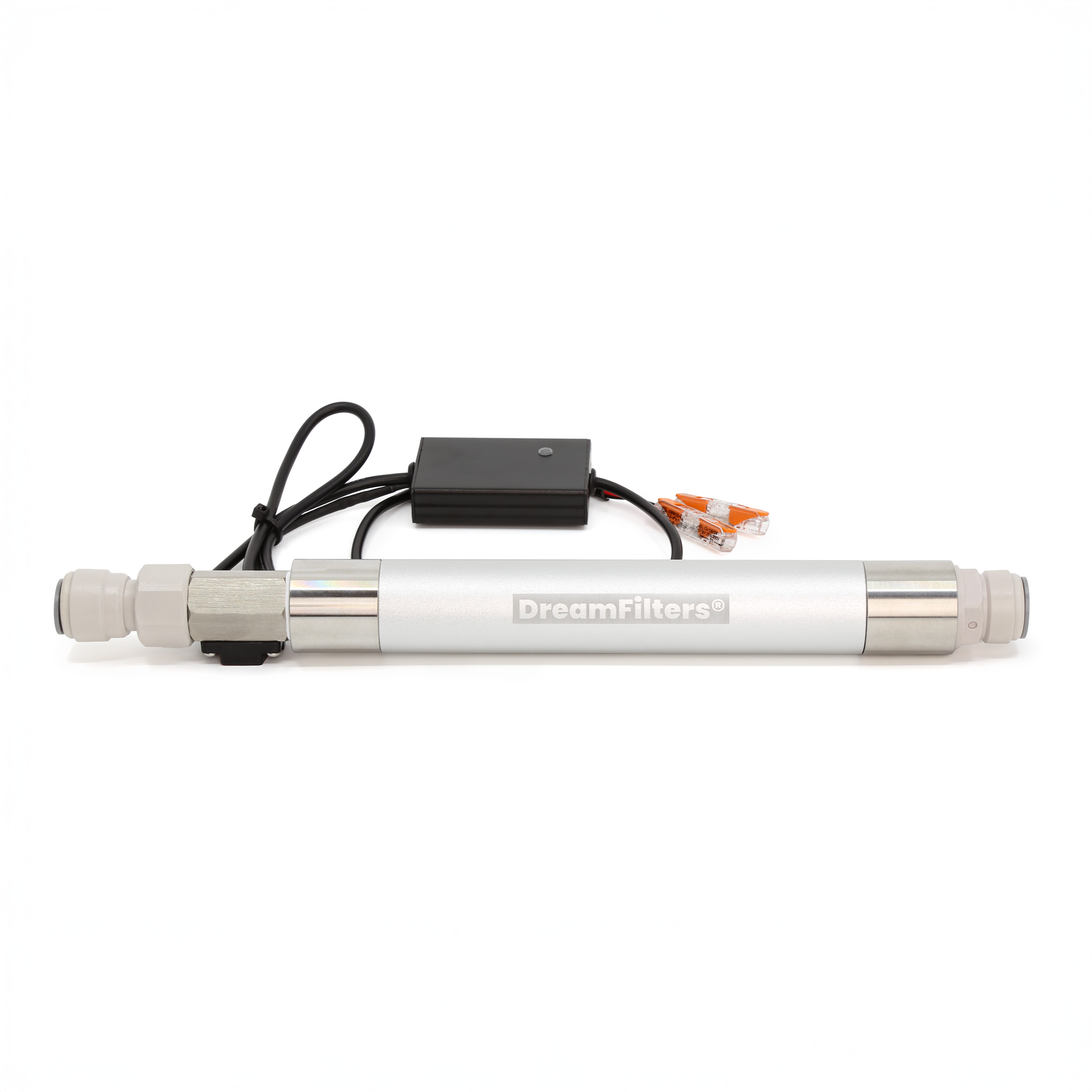

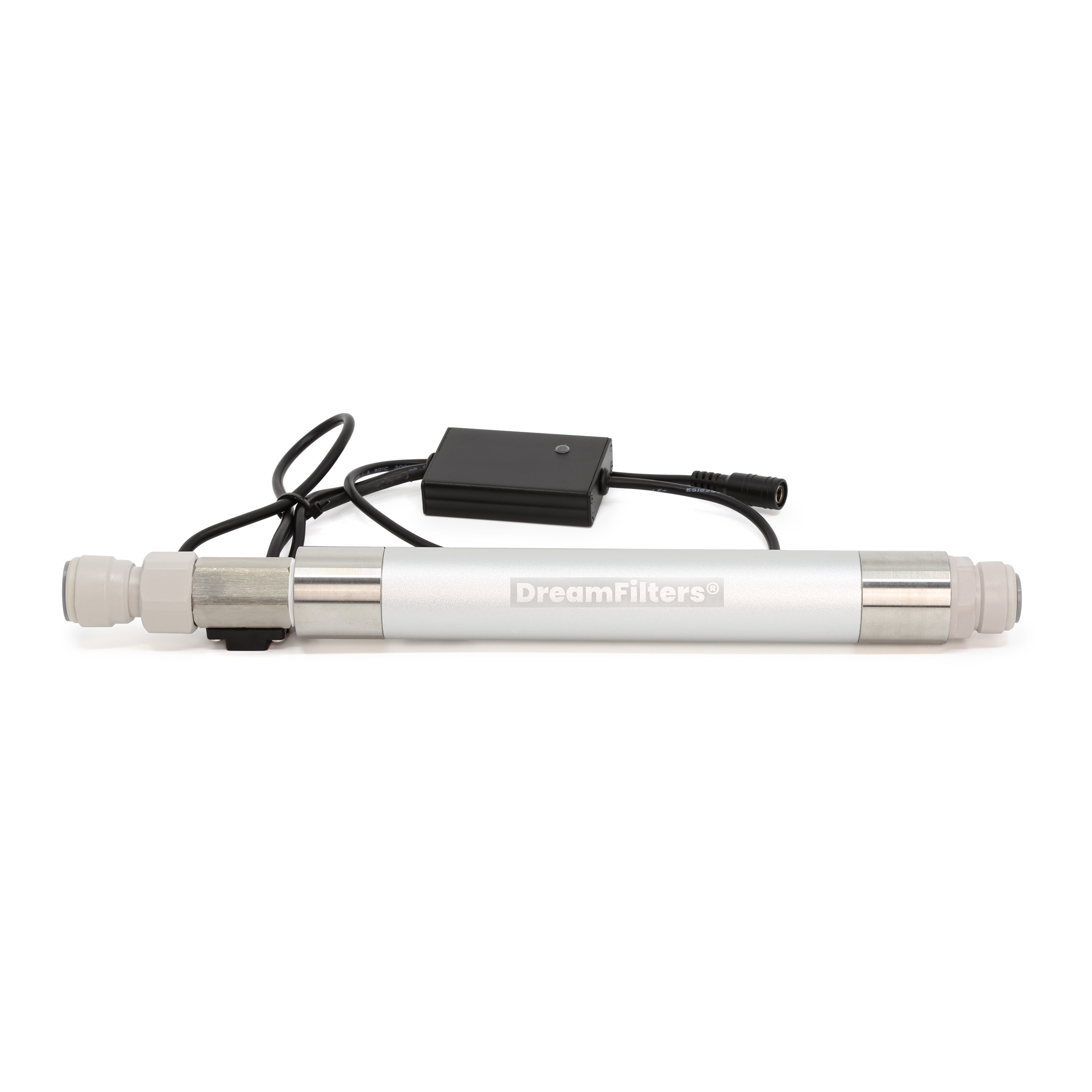

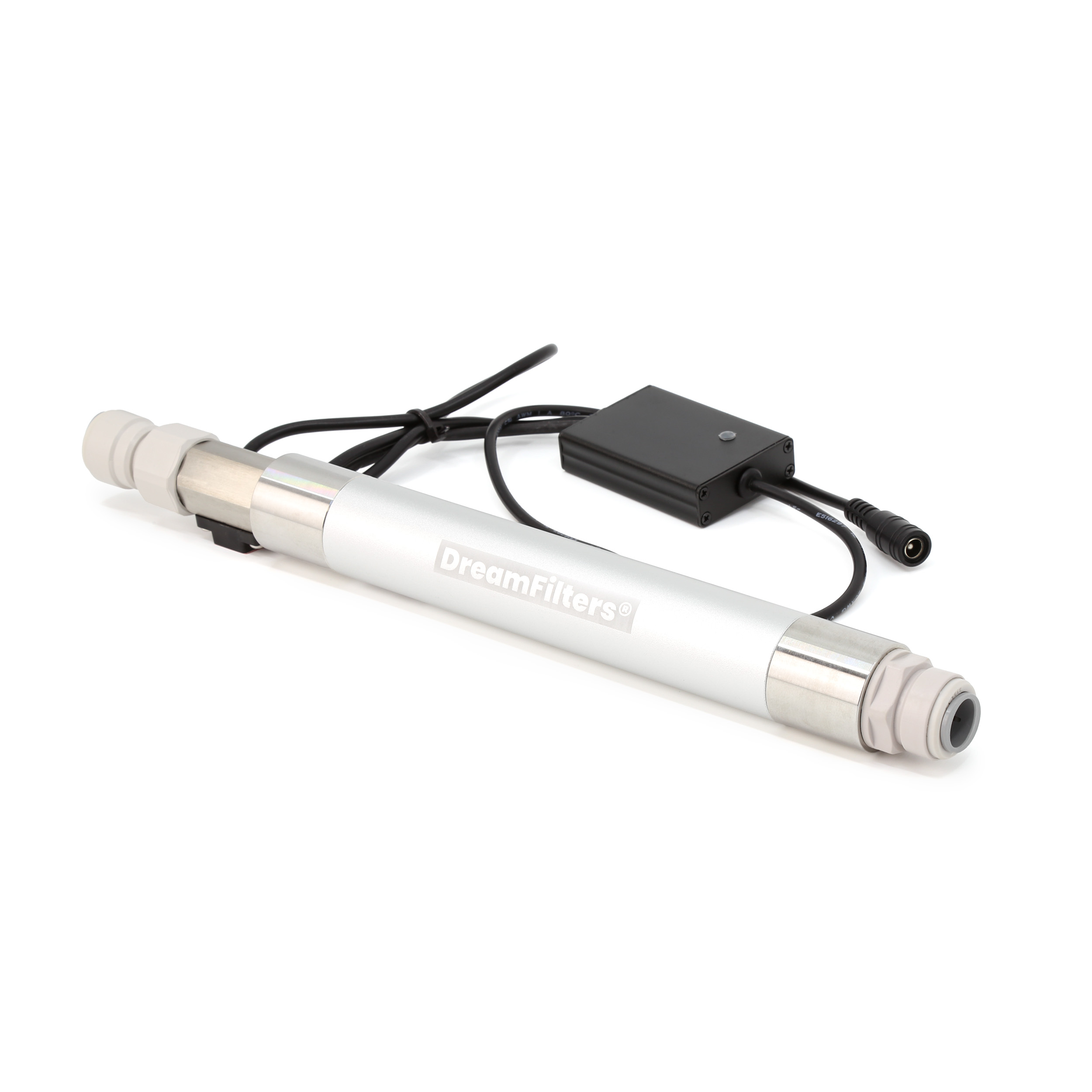

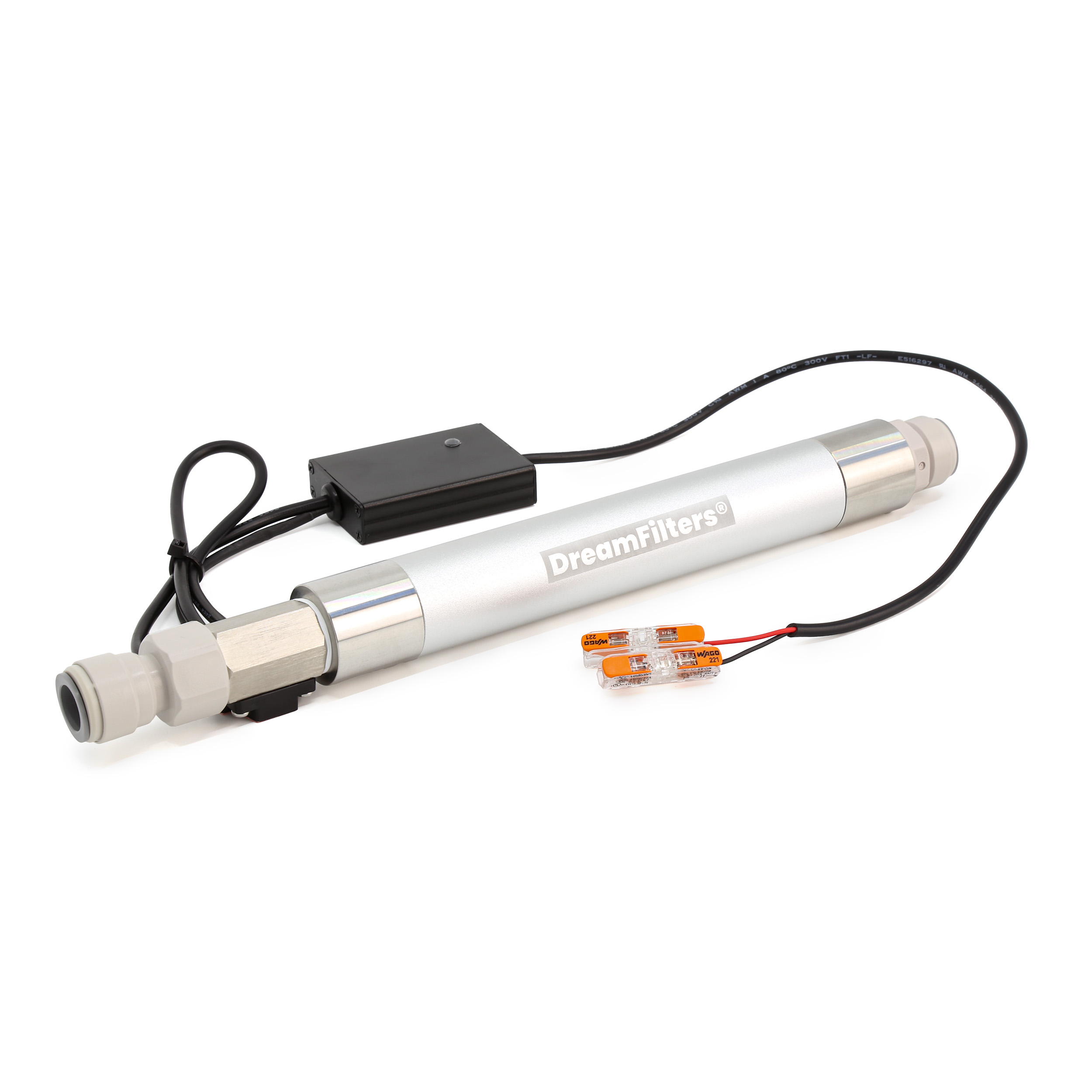

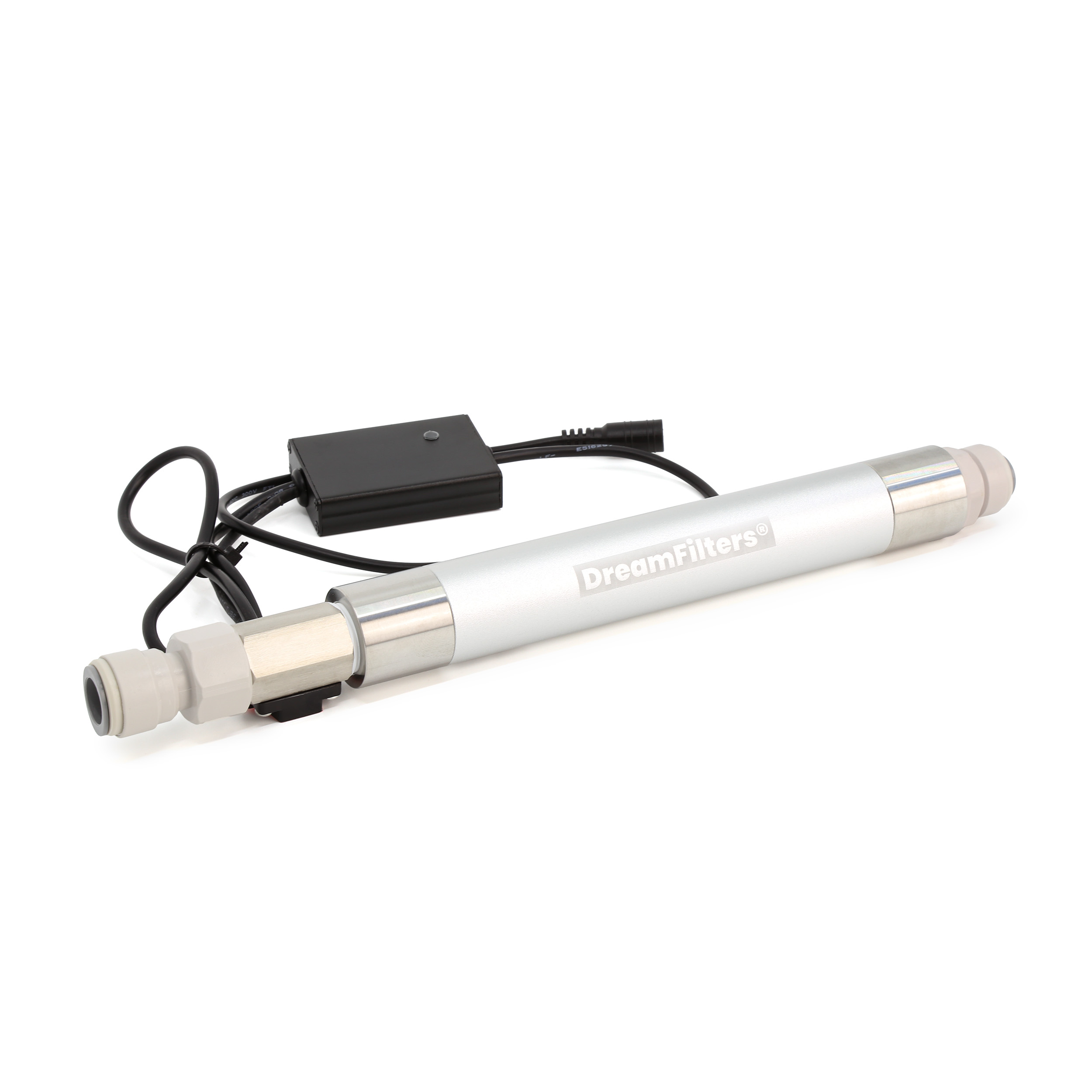

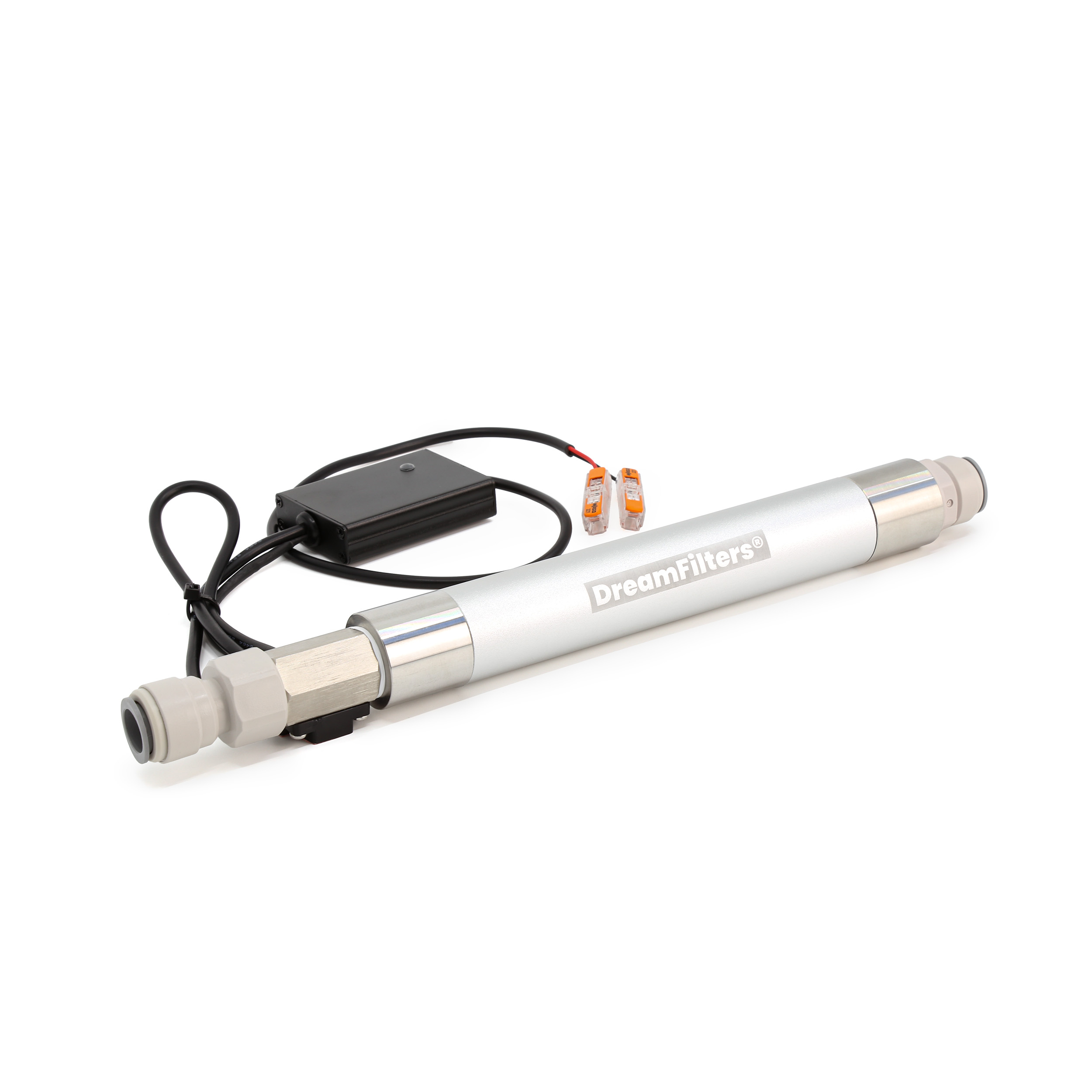

UVC-LED 12/24V module for water disinfection
for campervans and filtration systems.
15L /Min.

Effective protection against germs – mobile and for everyday use!

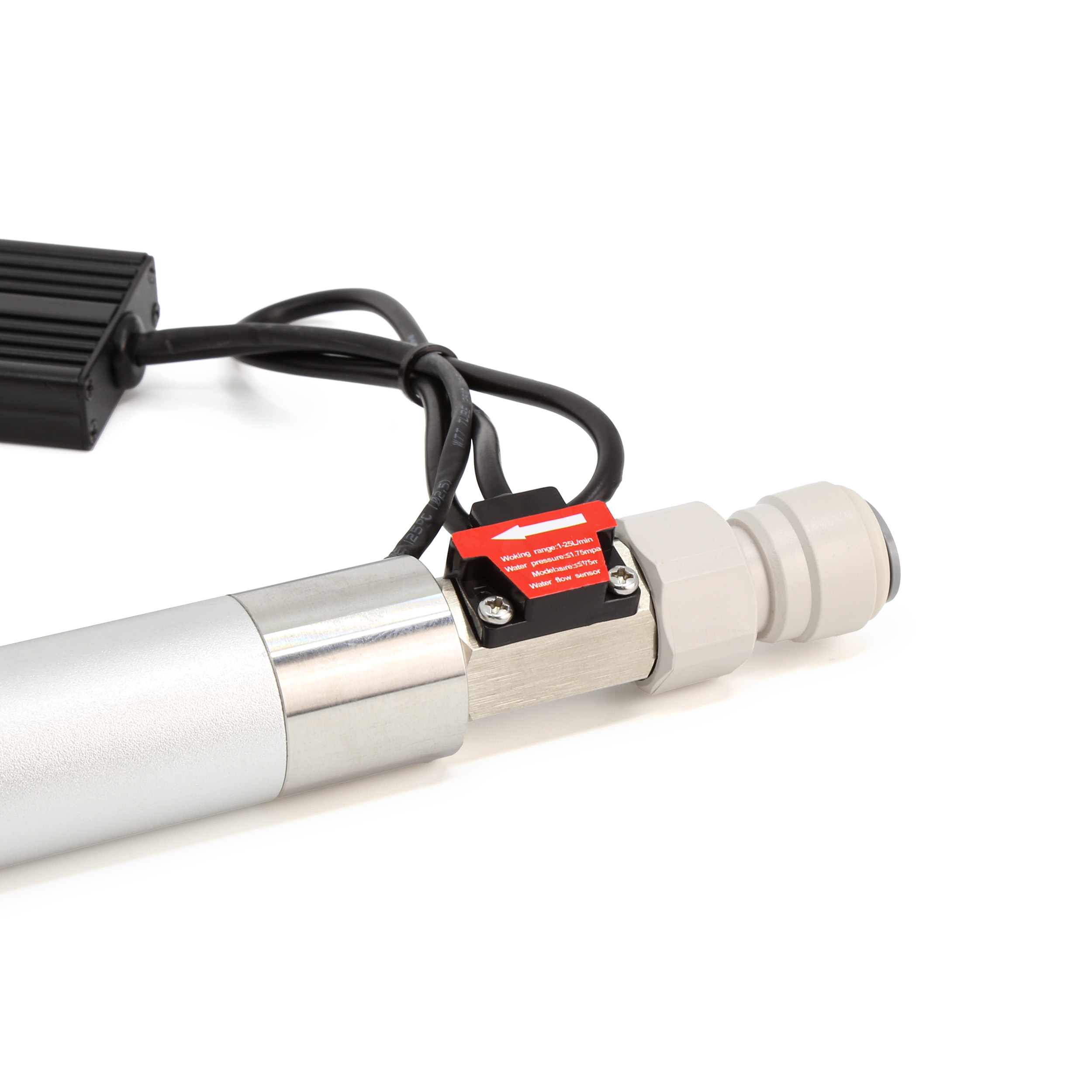

The UVC-LED unit from DreamFilters® has been specially developed to reliably improve water quality in homes, campervans, and mobile applications. Thanks to its compact design, flexible power supply (12V, 24V, or 230V DC), and low energy consumption, the module can be seamlessly integrated into existing water filtration systems. The device uses high-performance UVC LEDs that emit light in the 260 to 280 nm spectrum. This wavelength is ideal for effectively eliminating pathogens in water, ensuring consistently safe and clean drinking water. The module is equipped with an automatic water flow sensor that activates the UVC LEDs only when water flows through the unit. Unlike traditional UVC lamps that contain mercury, this UVC-LED technology is completely mercury-free. Disinfection occurs without chemical additives and leaves no harmful residues. This makes the method especially eco-friendly while ensuring maximum safety for your drinking water.

Good to know: If your system uses pipes with different diameters and you need an adapter to connect the LED-UVC module, please use our configurator to find the right fittings. If you can't find a suitable adapter, feel free to contact us – we will put together the right connection set for you.

Technical Specifications:
Connections: JG quick connectors for 1/2" tubing (12,70 mm)
Diameter of the LED-UVC module: 30 mm

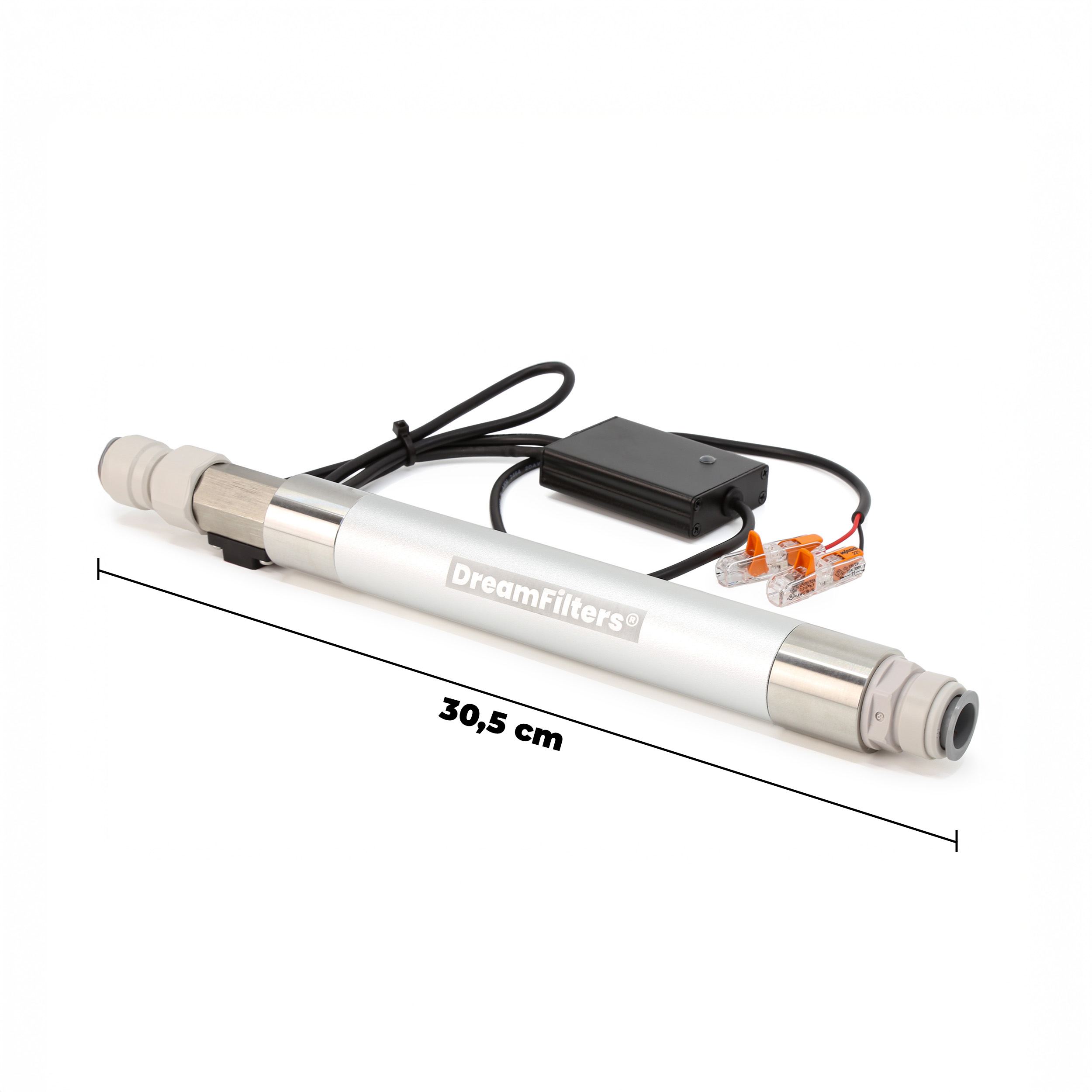

Length of the UVC LED module including flow sensor: 305 mm
Max water flow: 15 liters per minute
Wavelength: 260–280 nm
Sterilization rate: 99.999%
LED lifetime: 10,000 hours
Modul lifespan: 3-5 Year, depending on usage
Light output: 25 mW per individual LED
On/off cycles: 30,000 switching cycles
Rated power: 8W
Voltage: DC 12V/24V
Compatible with many reverse osmosis systems

Included in delivery:
1x UVC-LED module
2x Mounting clips
